havnt updated in awhile as i havnt been doin much on it realy due to money but got a fe bits done tnite and de other day Smile

made up a full stainless turbo back de other day
all new gaskets made up and fitted
new manifold made up tnite
along with m spots done and tinted
intercooler mounted and piped
turbo support bracket

had a small problem doh during the week and the car went on fire Sad there was a pin hole in de fuel line which i never spotted as it was at the back of the engine but i lucky got it in time only a small bit of damage done most of the wiring melted along with a injector and ait sensor but got it all sorted and back driving again Smile

started to do a bit more wrk there tnite and made up a better flow manifold Smile
using standard flange as itll save alot of hassel and becasue its steel not cast Smile

going get wiring sorted tmoro
and put on my one way valves that i made using a tire valve and stem chopped down

heres a few pics Smile

mani been made Smile


few welds to grind down still


pic of the pipe work for the turbo


intercooler going on Smile

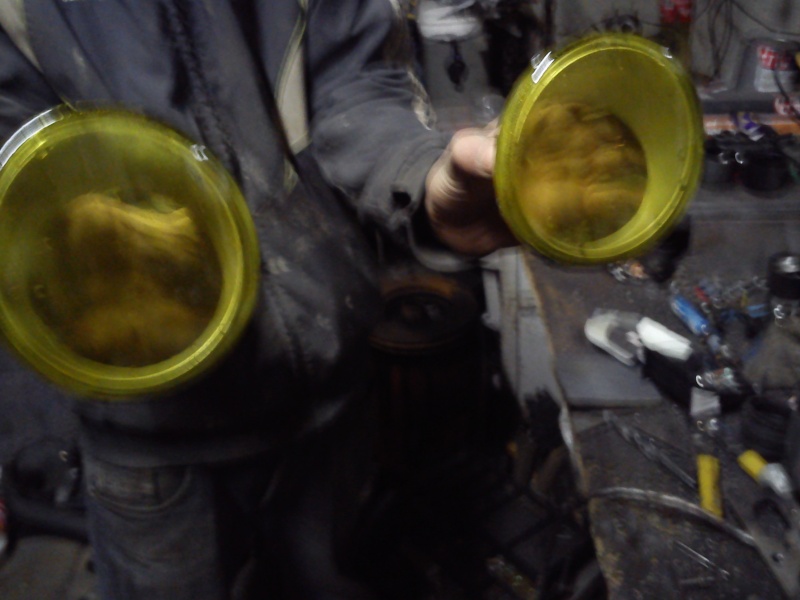

lights tinted thanks to graham


desided to go with h4s in my spots so i have and heads in them now Smile sumthing different and since its a budget build i had them in the house never used the only thing is i had to make brackets to hold them and widen the hole as the are h1 fitment




bracket made up to hold them good and tight Smile

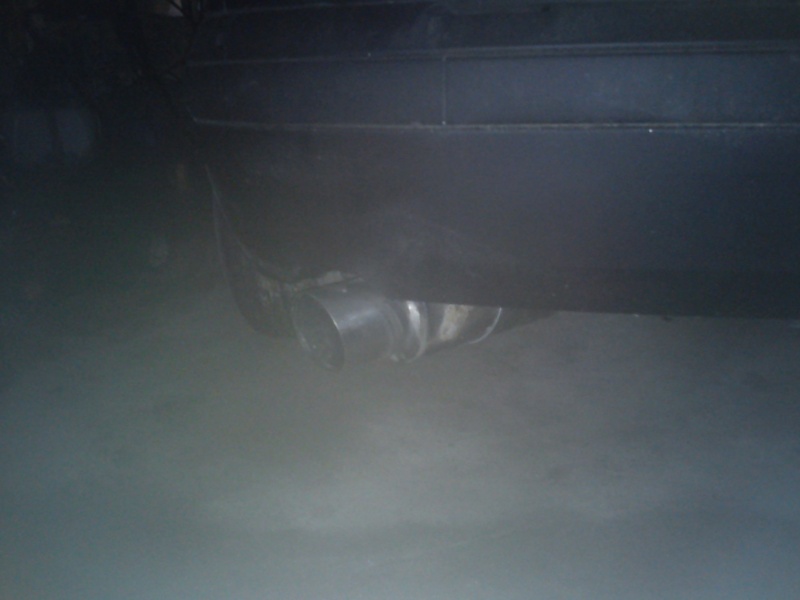

done my exhaust aswel..sounded muck with the bottom exhaust so desided to make up a full system and it sound 100000 times better now Smile full turbo back straight through stainless system on to a debaffled box...how i missed seening this Smile

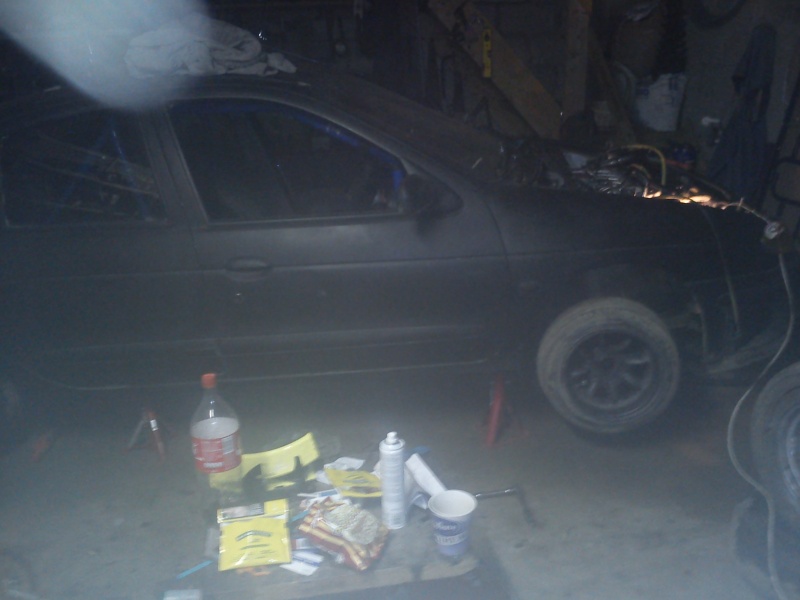

and how things look in the shed at the momment Smile



sud have more updates tmoro Smile
let us know what yous think Smile
avatar
aheaaj
The Wexican

Posts : 60
Reputation : 0
Join date : 2012-12-30
Age : 25
Location : wexford

Back to top Go down

Re: megane project :) *pics 4/3/13 *diy drag wing and bay tidy*

Post by richardc9052 on Thu Feb 14, 2013 6:06 pm

we need an outside vid now Smile get someone to hold the camera! Razz

Awesome update bud
avatar
richardc9052
The Export

Posts : 404
Reputation : 6
Join date : 2012-12-21

Back to top Go down

Re: megane project :) *pics 4/3/13 *diy drag wing and bay tidy*

Post by aheaaj on Fri Feb 15, 2013 12:58 pm

Ill try get sumthing up next week rich Smile

Small update was only at it for abit today made up a water bottle bracket for the rad..goin t give a go at anadoizing it cas its alloy Smile
avatar
aheaaj
The Wexican

Posts : 60
Reputation : 0
Join date : 2012-12-30
Age : 25
Location : wexford

Back to top Go down

Re: megane project :) *pics 4/3/13 *diy drag wing and bay tidy*

Post by aheaaj on Fri Feb 15, 2013 1:39 pm

making bracket Smile



fitting bracket Smile



also got a new timing belt rollers and tensionors for free Smile


more updates tmoro Smile
avatar
aheaaj
The Wexican

Posts : 60
Reputation : 0
Join date : 2012-12-30
Age : 25
Location : wexford

Back to top Go down

Re: megane project :) *pics 4/3/13 *diy drag wing and bay tidy*

Post by aheaaj on Sat Feb 16, 2013 12:20 pm

bit more got done tnite Smile
got half rad in and modified the fan from the bigger rad too fit on and made up new brackets
finished off most of the intercooler pipping just stuck for a straight peice of rubber pipe now
gave the bay a quick coat of paint
and relocated the power steering bottle

difference in sizes Smile have more room for my intercooler pipping now without havnt to bend the pipes

fan made fit from the full size rad

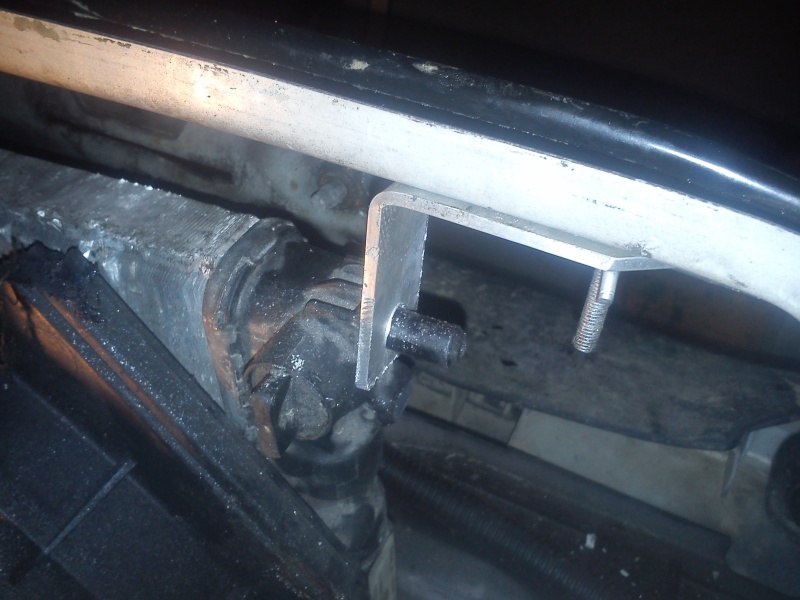

bracket i made up to hold the rad on the left side as i used to original bracket on the right side in the standard mounting point

rad now fully in and pipes plumbed


relocated power steering bottle


running alloy intercooler piping just stuck for the straight peice now


and lastly the bay with a fresh lick Smile


hopping to nearly all the fab work done tmoro then will be tearing it down tmoro nite and goin to clean everything up Smile
avatar
aheaaj
The Wexican

Posts : 60
Reputation : 0
Join date : 2012-12-30
Age : 25
Location : wexford

Back to top Go down

Re: megane project :) *pics 4/3/13 *diy drag wing and bay tidy*

Post by Kenny cynos on Sat Feb 16, 2013 8:50 pm

Should be lengths of pipe in the garage dude,
avatar
Kenny cynos
The Wexican

Posts : 430
Reputation : 26
Join date : 2012-12-21

Back to top Go down

Re: megane project :) *pics 4/3/13 *diy drag wing and bay tidy*

Post by 5e colin on Sun Feb 17, 2013 2:22 am

looking good aj
some lovly DIY there
avatar
5e colin

Posts : 90
Reputation : 1
Join date : 2012-12-31
Location : THE BOOST LANE

Back to top Go down

Re: megane project :) *pics 4/3/13 *diy drag wing and bay tidy*

Post by davep91 on Sun Feb 17, 2013 2:37 am

Coming along nicely any more plans for it
avatar
davep91
id-workz customer

Posts : 129
Reputation : 0
Join date : 2012-12-29
Age : 27
Location : Suzuka International Racing Course

Back to top Go down

Re: megane project :) *pics 4/3/13 *diy drag wing and bay tidy*

Post by aheaaj on Mon Feb 18, 2013 10:58 am

sound colin

not realy much at the momment as im realy tight on money...hopping to see if one of the lads will weld up up a mani for me as ive no tig here yet..goin with a short runner intake..and goin with bigger injectors and making up plans for a electronic boost controller
avatar
aheaaj
The Wexican

Posts : 60
Reputation : 0
Join date : 2012-12-30
Age : 25
Location : wexford

Back to top Go down

Re: megane project :) *pics 4/3/13 *diy drag wing and bay tidy*

Post by aheaaj on Mon Feb 18, 2013 12:58 pm

samll update made up a cold feed to turbo out of an old speaker box air channel done abit of chopping and filling to get it t fit rite and a quick shot of paint also have a few snap of how it sits now












car needs a good clean and the paint touched up which ill be doin next week still a few more small bits to do but ill be taking it for a spin mid next week Smile
avatar
aheaaj
The Wexican

Posts : 60
Reputation : 0
Join date : 2012-12-30
Age : 25
Location : wexford

Back to top Go down

Re: megane project :) *pics 4/3/13 *diy drag wing and bay tidy*

Post by aheaaj on Tue Feb 19, 2013 11:25 am




avatar
aheaaj
The Wexican

Posts : 60
Reputation : 0
Join date : 2012-12-30
Age : 25
Location : wexford

Back to top Go down

Re: megane project :) *pics 4/3/13 *diy drag wing and bay tidy*

Post by aheaaj on Fri Feb 22, 2013 12:48 pm

car had its first proper day out yesterday Smile got 1 new coil off a fella dwn de road 4 a 10e which wasnt to bad thn found that the other one was bad aswel so went arund to one of the lads near mine that specailize in renaults and got 3 off him for free Smile got me plugs gapped to 0.030 to stop spark blow aswel..car is spot on now and spools realy quick Smile next is to put in an fcd im making up..few pics off it out in the wild Smile


didnt have a extension long enufe to reach the plugs either without taking off the inlet manifold so made one up Smile

goin finish up a good bit tmoro and give it a good wash Smile
avatar
aheaaj
The Wexican

Posts : 60
Reputation : 0
Join date : 2012-12-30
Age : 25
Location : wexford

Back to top Go down

Re: megane project :) *pics 4/3/13 *diy drag wing and bay tidy*

Post by aheaaj on Sun Feb 24, 2013 3:28 am

was having problems with my boosting peakimg to high and found out wat was wrng after...it seemed tht the info i found out abut my actuator was wrng..i tested it by making up a peice of pipe wit a tyre valve on one side and sloting de other side onto the actuator and bring up the pressure till the wastegate opens fully and thn bringing de pressure bck dwn till it starts to close and it seems tht the wastegate is to open fully at 20 psi so i chect the ct9 one and it was .4 so i made between the 2 of thm a adjustable actuator Smile


meassured up the ct9 to wer it fits proper and redrilled the bracket on it it thn chopped the arm jst the rite size to fit


screwed off the old t15 actuator adjustor




driiled out the adjustor as the ct9 arm as it ticker


and tapped and died both of them


scwred thm toghter Smile


and job done Smile



im on the look out now for the high/low off a glanza if anyone has one as close to free Smile

and cud anyone shed sum light on the how the actuator vacuum ports are run for high/low
avatar
aheaaj
The Wexican

Posts : 60
Reputation : 0
Join date : 2012-12-30
Age : 25
Location : wexford

Back to top Go down

Re: megane project :) *pics 4/3/13 *diy drag wing and bay tidy*

Post by aheaaj on Sun Feb 24, 2013 11:24 am

made up a 2 stage boost controller there anut and hour ago Smile only took abut 30 mins to make Smile

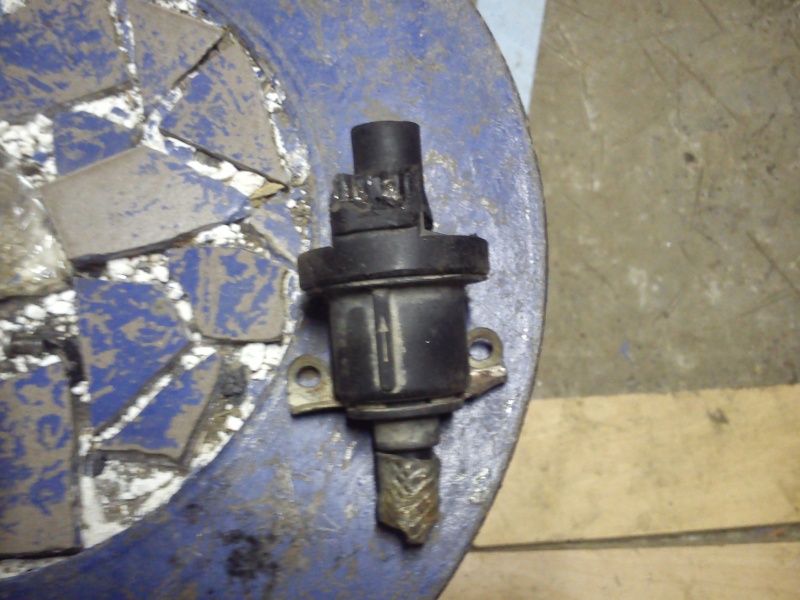

used an alfa acis solienid
choped up a carb bowl
switch (rocker switch so it cant be switched by mistake)
and a pipe of pipe and a relay

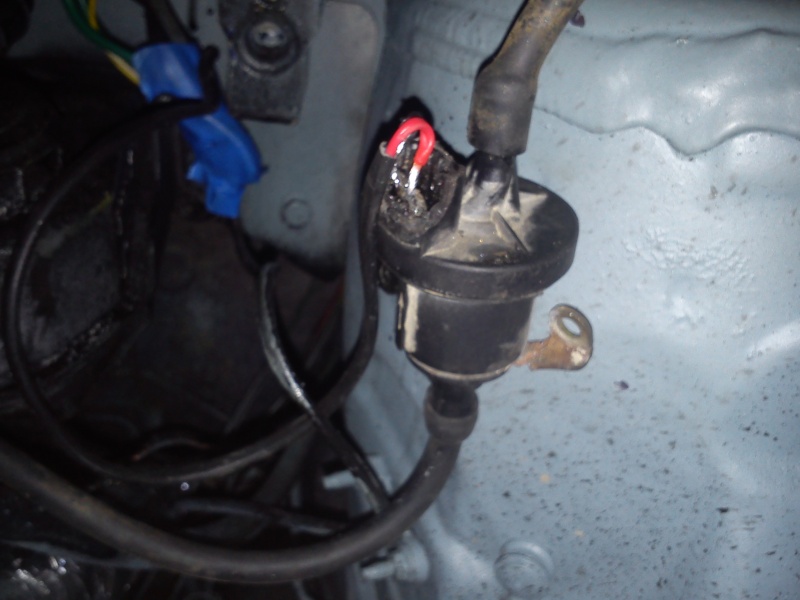

alfa acis solienid
